FLATBED STEEL RULES
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
voestalpine
SPECIAL RULES
In the future, special steel rules will be sold exclusively under the voestalpine brand. They will no longer be available under the bohlerstrip product brand. This will lead to some changes in the article description (as shown below). All product features and parameters will remain as they are.
| bohlerstrip grade | voestalpine grade |
| TOP 36 | voestalpine 350 |
| TOP | voestalpine 450 |
| UNIVERSAL | voestalpine 350 / 660 |

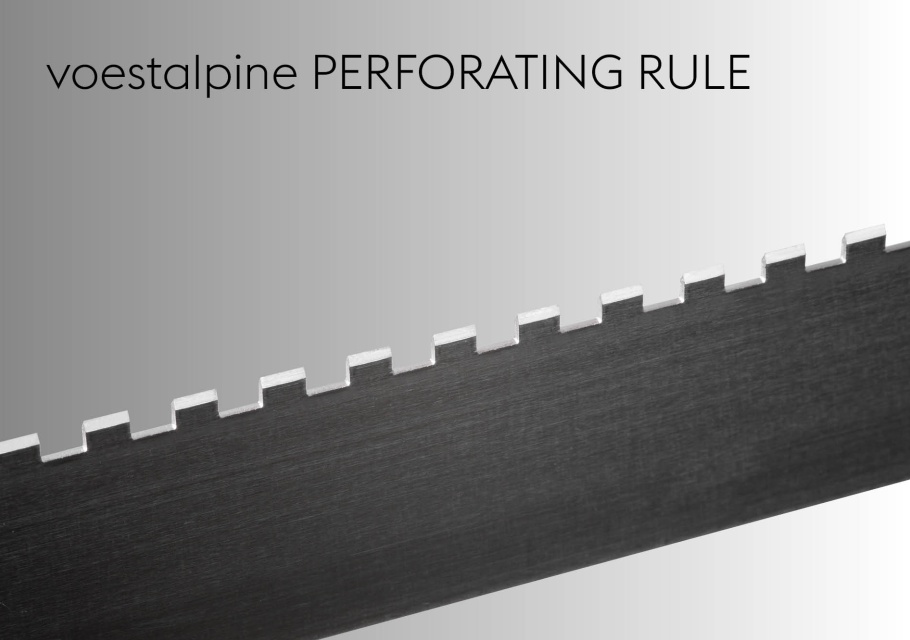

voestalpine PERFORATING RULE
Perforating rules are available in a wide range of thicknesses and tooth/gap combinations. The spacing is usually given in mm. We also manufacture in point and inch spacings on request.
| Grade | voestalpine 450, voestalpine 350 / 660 |
| Bevel profile | CF, CFDDB |
| Thickness | 2 pt / 3 pt / 4 pt 0.71 / 1.05 / 1.42 mm |
| Heights | 21.30 - 25.40 mm |
| Spacing P | Minimum tooth / gap width is defined by rule thickness. |

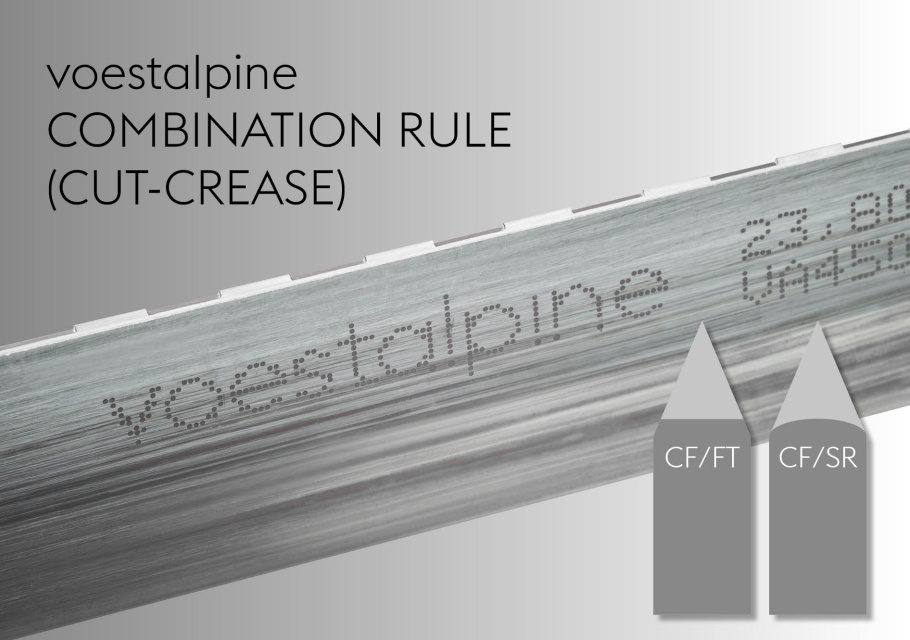

voestalpine COMBINATION RULE (CUT-CREASE)
With cut-crease rules, there is no need to insert individual parts of cutting and creasing rules. Cut-crease rules are produced in standard punched (CF), or in flat- or round machined executions for high-quality jobs (CF / FT and CF / S R).
| Grade | voestalpine 450, voestalpine 350 / 660 |
| Bevel profile | CF, CF/FT, CF/SR |
| Thickness | 2 pt / 3 pt / 4pt 0.71 / 1.05 / 1.42 mm |
| Heights | HS = cutting part height HR = creasing part height |
| Spacing P | cut / crease |

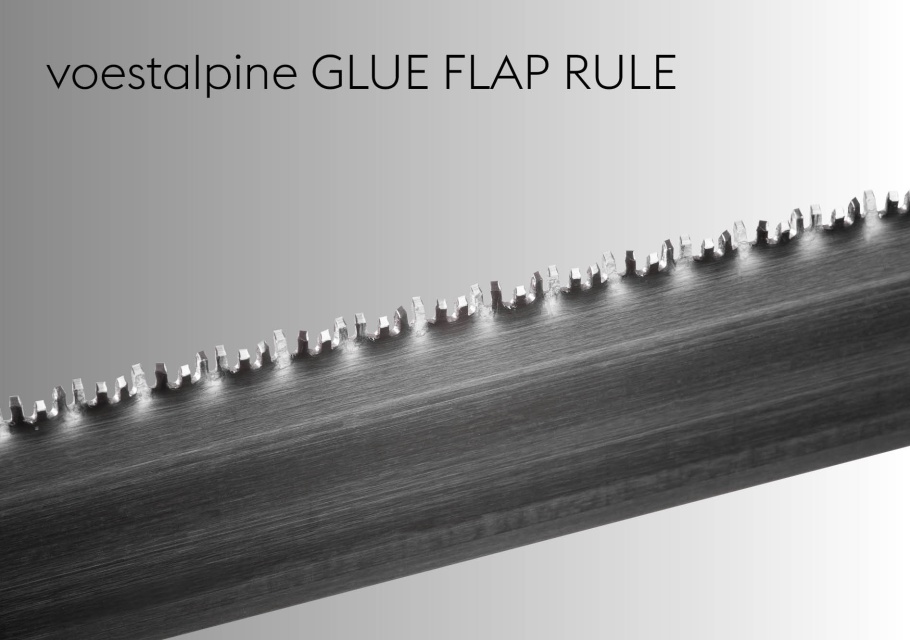

voestalpine GLUE FLAP RULE
Glue flap rules are wave edge perforating rules, which are manufactured in the same heights as scoring rules. They are used to roughen the glue flaps on cardboard boxes so as to obtain a firm grip surface for the adhesive.
| grade | voestalpine 450 , voestalpiine 350 / 660 |
| Bevel profile | CF |
| Thickness | 2 pt, 0.71 mm |
| Heights | 23.32 / 23.50 / 23.60 mm |
| Spacing P | Tooth / gap 0.71 / 0.71 mm - 2 pt / 2 pt |
| Wave spacing | 5.0 mm |

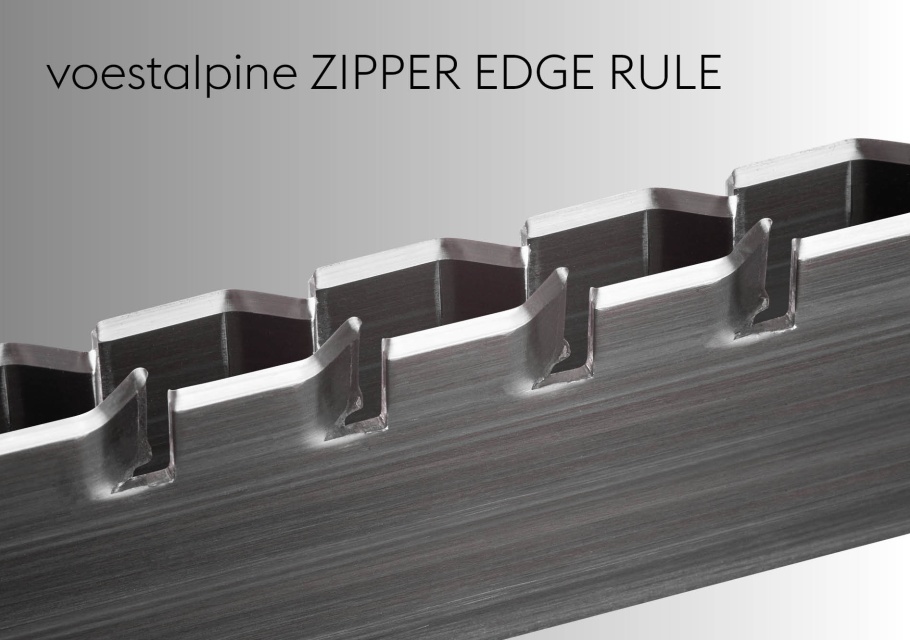

voestalpine ZIPPER EDGE RULE
Zipper rules provide a tear-open solution especially for shelf ready packagings.
| Grade | voestalpine 450 |
| Bevel profile | CF |
| Thickness | 2 pt / 3 pt 0.71 / 1.05 mm |
| Heights | 21.30 - 25.40 mm |
| Tooth spacing A | 6.0 / 8.0 / 10.0 / 12.0 |
| Specification | straight - angled part: 3/5 - 2/5 |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
Wolfgang Reich
Sales Steel Rules & Rule Die Steel
+43 7442 600 29150
<This e-mail address is protected against spam bots, you have to activate JavaScript in your browser to see it.>
About bohlerstrip
Bohlerstrip is a registered trademark of voestalpine Precision Strip Group from Austria.
We transform premium-quality strip steel into tools for cutting and stamping processes that are developed for every application with the utmost of precision.
Bohlerstrip is a registered trademark of voestalpine Precision Strip Group from Austria.
We transform premium-quality strip steel into tools for cutting and stamping processes that are developed for every application with the utmost of precision.
