FLATBED STEEL RULES
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
FINE GROUND
CUTTING RULES
Beyond countless standard applications, we continuously develop cutting dies for ever‑new uses—most often at the request of our many international customers. These solutions combine economic efficiency with state‑of‑the‑art material performance, resulting in exceptional service life, sharpness, precision, and application‑specific cutting geometries. The bohlerstrip team is always the right partner when it comes to understanding and supporting customer requirements—especially for innovative and unconventional applications that demand a high degree of technical expertise and creativity.
PLAST‑X 800
The perfect choice whenever an extremely sharp and ultra‑fine cut is required
STABILO‑CUT SX
For demanding conditions, where maximum stability truly matters
LABEL-X
The perfect choice for label cutting
PLAST‑X 800
The perfect choice whenever an extremely sharp and ultra‑fine cut is required
STABILO‑CUT SX
For demanding conditions, where maximum stability truly matters
LABEL-X
The perfect choice for label cutting
world-wide unique hardening parameters for cutting bevels
PLAST-X 800
UNIQUE DUAL AND DEEP EDGE HARDENED
Plast‑X 800 is a proven bohlerstrip innovation for cutting PET, PE, PVC, PP, PS, blister packs, semiconductor components, and other thermoplastics. By applying advanced razor‑blade technology, Plast‑X delivers significantly enhanced die‑cutting performance.
Made to extend the performance and lifetime of your die‑cutting tools.
With a super‑hard cutting edge, deep hardening, and a super‑fine ground bevel, this solution delivers clean, dust‑free cuts, outstanding durability, and maximum stability in die‑cutting operations.
Features
» Dual edge and deep hardened
» Super-fine ground finish
» High stability
Application
» Plastic materials PVC, PP, PET, PA, PE, films, foils, electronics, IML
» Rigid materials gaskets
Plast‑X 800 is a proven bohlerstrip innovation for cutting PET, PE, PVC, PP, PS, blister packs, semiconductor components, and other thermoplastics. By applying advanced razor‑blade technology, Plast‑X delivers significantly enhanced die‑cutting performance.
Made to extend the performance and lifetime of your die‑cutting tools.
With a super‑hard cutting edge, deep hardening, and a super‑fine ground bevel, this solution delivers clean, dust‑free cuts, outstanding durability, and maximum stability in die‑cutting operations.
Features
» Dual edge and deep hardened
» Super-fine ground finish
» High stability
Application
» Plastic materials PVC, PP, PET, PA, PE, films, foils, electronics, IML
» Rigid materials gaskets
| PLAST-X 800 soft | PLAST-X 800 | PLAST-X 800 hard | |
| Hardeness body | ~ 340 HV | ~ 390 HV | ~ 450 HV |
| Hardeness tip area | ~ 800 HV | ~ 800 HV | ~ 800 HV |
| Hardeness second zone | ~ 650 HV | ~ 650 HV | ~ 650 HV |
| Thickness | 2 pt (0.71 mm) | 2 pt (0.71 mm) | 2 pt / 3 pt (0.71 / 1.05 mm) |
| Heights | 23.60 - 23.80 mm | 23.60 / 23.80 mm | 23.60 - 50.00 mm |
| Bevel profile | CF / CFDTB | CF / CFDTB | CF / CFDTB |
| Bevel finish | super-fine ground (X) | super-fine ground (X) | super-fine ground (X) |
| Bevel angle | 30°/ 42° / 53° | 30° / 42° | 30° / 42 ° |
very stable cutting bevel setting for rough conditions
STABILO-CUT SX
SMOOTH CUTTING IN ROUGH DIE-CUTTING ENVIRONMENTS
The specifically designed bevel and wide‑angle rule tip improve stability during die‑cutting, reduce dust and angel hair on delicate materials, and ensure clean, precise cuts—making it ideal for thermoforming applications as well.
Features
» Robust wide abgle tip (65°– 53° / 60°– 42°)
» Sharp rule tip,
» Super-fine ground bevel finsih
Application
» For use in rough die-cutting environments
The specifically designed bevel and wide‑angle rule tip improve stability during die‑cutting, reduce dust and angel hair on delicate materials, and ensure clean, precise cuts—making it ideal for thermoforming applications as well.
Features
» Robust wide abgle tip (65°– 53° / 60°– 42°)
» Sharp rule tip,
» Super-fine ground bevel finsih
Application
» For use in rough die-cutting environments
| Quality | UNIVERSAL / UNIVERSA 60 |
| Hardeness body + edge | ~ 340 HV / ~ 450 HV // ~ 660 HV |
| Thickness | 2 pt / 3 pt / 4 pt (0.71 / 1.05 / 1.42 mm) |
| Heights | 23.60 / 23.80 mm 30.00 - 50.00 mm |
| Bevel profile | CF / CFDTB |
| Bevel finish | super-fine ground (SX) |
| Bevel angle | ~ 65° / 53° // ~ 60° / 42° |

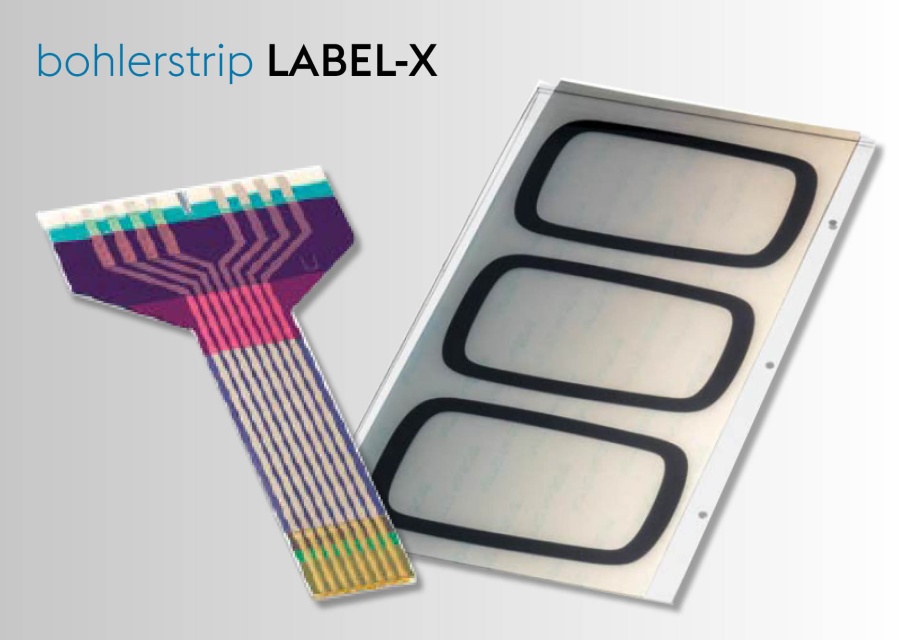

Label-X, the next generation cutting rule series perfectly suitable to cut labels and foils.
LABEL-X
The next generation label cutting rule is perfect for die-cutting of labels due to its excellent cutting performance with superfine cutting bevel and supersharp cutting edge.
Three versions offer the perfect cutting solution for the label industry.
Benefits
» Perfect cut quality
» Reduced friction in die-cutting
» Premium knife service life
» Tight height tolerances
Features
» Hardness options
» Ultrafine cutting bevel
» Ultra sharp cutting edge
Application
» Paper & metallised labels
» Foils
» Films / foils in electronics industry
LXS has the focus on extreme bendability at reduced body hardness while LXH aims at maximum service life and stability due to its increased body and edge hardness. LX represents the ideal compromise between LXS and LXH.
Three versions offer the perfect cutting solution for the label industry.
Benefits
» Perfect cut quality
» Reduced friction in die-cutting
» Premium knife service life
» Tight height tolerances
Features
» Hardness options
» Ultrafine cutting bevel
» Ultra sharp cutting edge
Application
» Paper & metallised labels
» Foils
» Films / foils in electronics industry
LXS has the focus on extreme bendability at reduced body hardness while LXH aims at maximum service life and stability due to its increased body and edge hardness. LX represents the ideal compromise between LXS and LXH.
| LXS | Hardeness body / edge | ~ 340 HV / ~ 625 HV |
| LX | Hardeness body / edge | ~ 390 HV / ~ 625 HV |
| LXH | Hardeness body / edge | ~ 450 HV / ~ 670 HV |
| Thickness | 1.3 pt (0.45 mm) | |
| Heights | 8 mm / 9.5 mm / 12 mm | |
| Bevel profile, angle | CF, 42° | |
| Bevel finish | bright, ultra fine, razor blade technology (Ra ~0.08 µm) |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
