Flatbed steel rules
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
STAINLESS
PORTFOLIO
CORROSION RESISTANCE WHERE IT MATTERS
bohlerstrip offers a comprehensive standard portfolio of stainless steel cutting rules designed for wet environments. Its new generation of cutting rules meets the highest hygienic standards, making it ideal for applications in the food, healthcare, and pharmaceutical industries.
Benefits
» Comparable lifetime to standard carbon steel rules
» clean cut = no dust
» corrosion free
» best bendability
bohlerstrip offers a comprehensive standard portfolio of stainless steel cutting rules designed for wet environments. Its new generation of cutting rules meets the highest hygienic standards, making it ideal for applications in the food, healthcare, and pharmaceutical industries.
Benefits
» Comparable lifetime to standard carbon steel rules
» clean cut = no dust
» corrosion free
» best bendability
the bohlerstrip stainless portfolio is the only choice for high hygienic pharmacy standards
serrates stainless rules suits perfect for application in industrial food environments

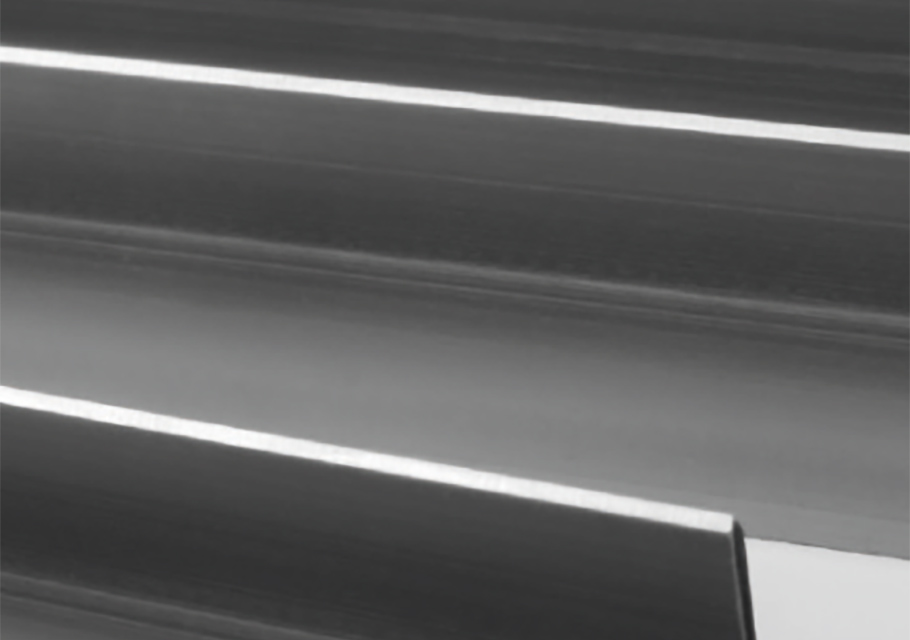

stainless cutting rule in silver colour and no inkjet-marking due to hygienic reasons
STAINLESS 430/600
bohlerstrip features a world‑wide unique hardening process that delivers unmatched tip hardness combined with stainless steel material. A strong, long‑lasting bevel and an outstanding cutting edge with 600 HV hardness set a new benchmark—making it the ultimate and only choice wherever hygienic cutting is required. The one cutting rule customers truly need.
| Hardeness body | ~ 430 HV |
| Hardeness tip | ~ 600 HV |
| Bevel angle | 42° |
| Thickness | 2 pt / 3 pt (0.71 mm / 1.05 mm) |
| Heights | 23.80 mm (other on request) |
| Bevel | CF / CFDB sharp cutting edge |
| Bevel finish | GX fine ground |

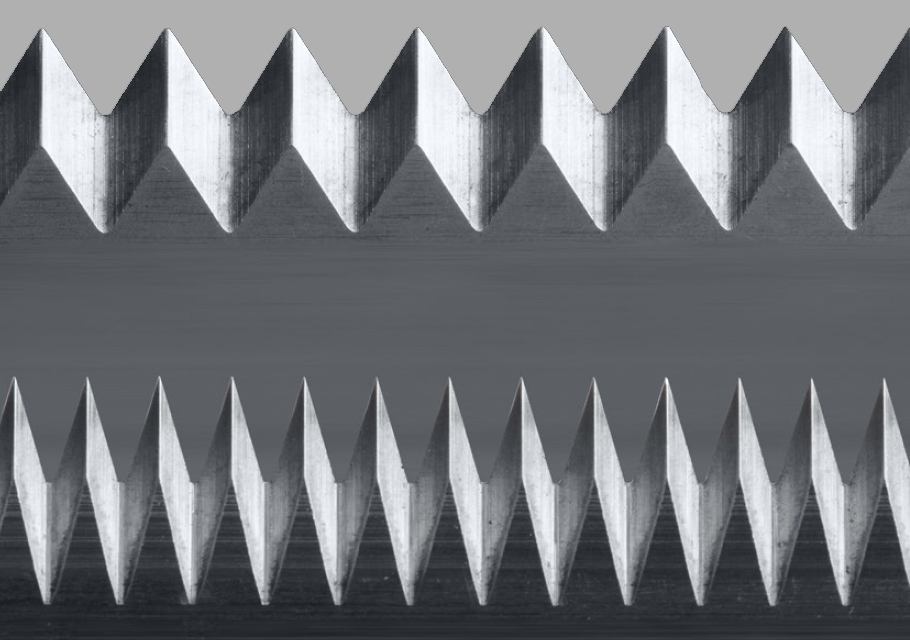

high-end serrated teeth geometry
STAINLESS SF/STV SERRATED RULES
Both worlds in one rule: an aggressive tooth design combined with world‑wide unique stainless steel rule technology. bohlerstrip offers a broad range of corrosion‑resistant steel grades, including standard austenitic steel 1.4310. The specially engineered tooth design is ideal for food industry applications such as cutting fruits and vegetables (e.g. potatoes for fries), foiled trays, and household products—reliably performing even under humid conditions.
FEATURES
» Deep ground teeth with aggressive tooth design
» Side face bevel in SF/STV steep sharp
» corrosion free, suitable for wet and hygineic conditions
FEATURES
» Deep ground teeth with aggressive tooth design
» Side face bevel in SF/STV steep sharp
» corrosion free, suitable for wet and hygineic conditions
| Hardeness body | ~ 430 HV |
| Hardeness tip | ~ 430 HV |
| Teeth | 8 TPI / 12 / TPI |
| Thickness | 2 pt / 3 pt (0.71 mm, 1.05 mm) 4 pt (1.42 mm) |
| Heights | up to 100 mm possible |
| Bevel | SF (side face bevel) |
| Bevel finish | deep ground teeth |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
