FLATBED STEEL RULES
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
Bevel Finish
To cater for the full range of applications, bohlerstrip offers a large variety of bevel finishes.

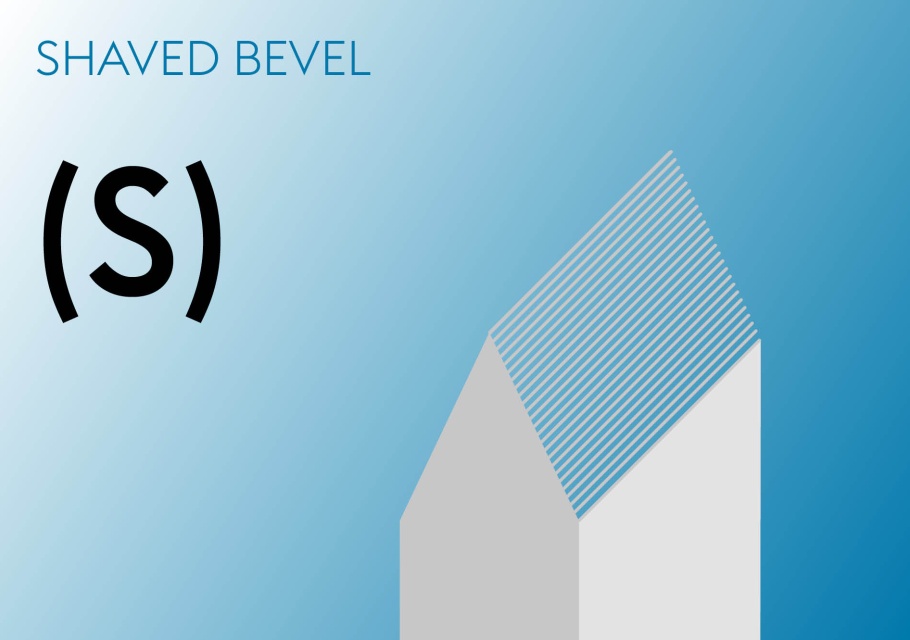

Shaved Cutting Bevel (S)
The standard bevel finish for bohlerstrip cutting rules is a precision shaved quality surface bevel. These rules benefit from premium bendability and height consistency.

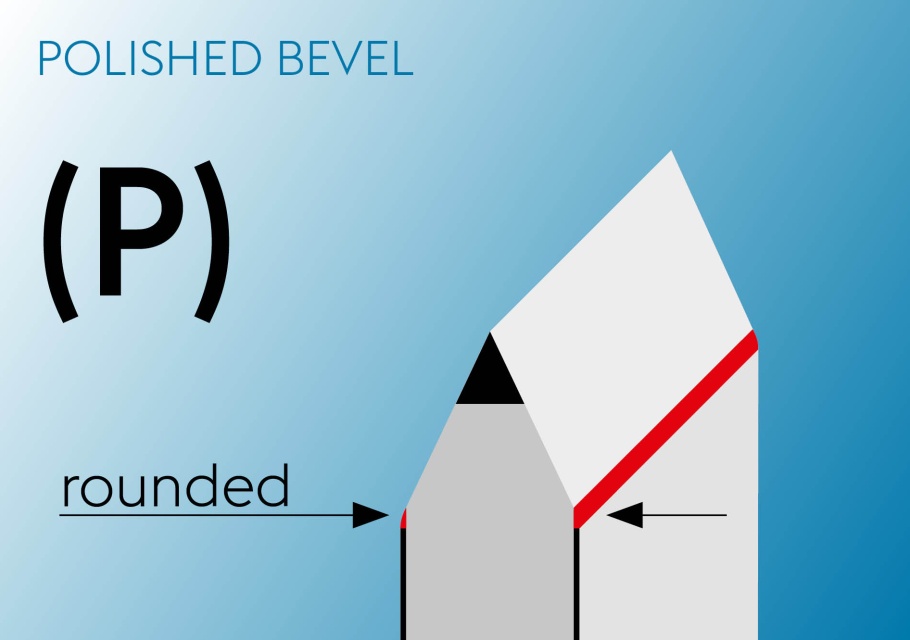

Polished Cutting Edge (P)
Polished cutting rules combine the benefits of shaved and ground execution in one rule.
» Reduced dusting
» Less friction when penetrating the cut material, thus reducing cutting force
» Rounded transition zone between bevel and body reduces material surface cracking
This execution is also available with a polished double bevel (PL) in CFDB or SFDB.
» Reduced dusting
» Less friction when penetrating the cut material, thus reducing cutting force
» Rounded transition zone between bevel and body reduces material surface cracking
This execution is also available with a polished double bevel (PL) in CFDB or SFDB.

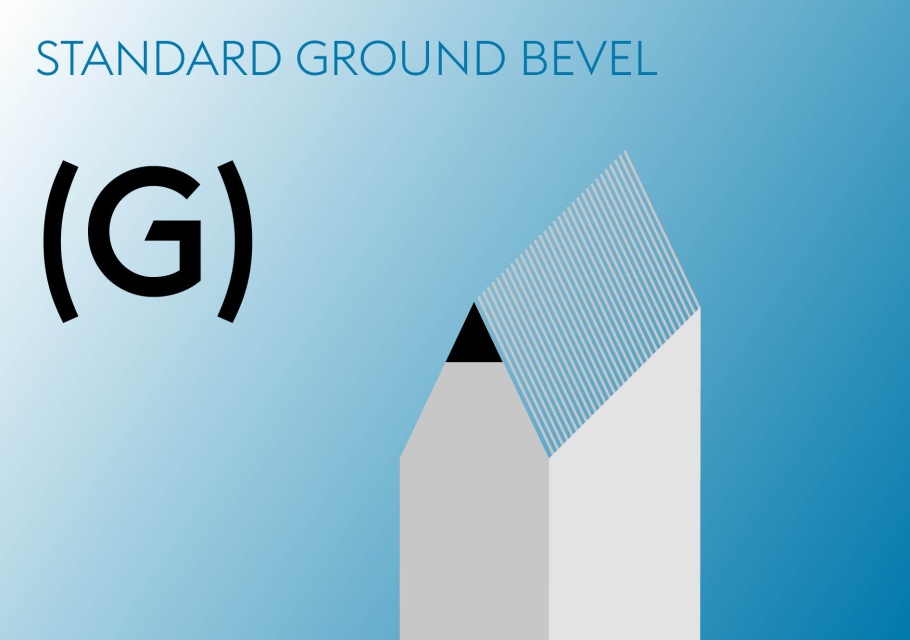

Standard Ground Bevel (G)
A standard ground cutting edge has proven the best choice for the cost-efficient cutting of plastics, rubber, laminates and coated materials. We recommend our HF hardened cutting rules in a “G” finish as UNIVERSAL, UNIVERSAL 60 and UNIVERSAL 75. The ground cutting edge achieves easy material penetration at a
reduced cutting pressure. For thermoforming jobs, we recommend UNIVERSAL 60 “G”.
reduced cutting pressure. For thermoforming jobs, we recommend UNIVERSAL 60 “G”.
Fine Ground Bevel (GX)
Cutting rules with an emphasis on an advanced, fine-ground cutting bevel, designed for laminated /coated cardboard and materials for the thermoforming industry. This next-generation grinding technology opens the door for all kinds of new die-cutting applications where standard cutting rules achieve suboptimum results.
Super-fine Ground Bevel (X)
These cutting rules are processed on a unique grinding machine using razor blade technology, thus ensuring a super-sharp cutting edge with a super-fine ground bevel finish. Such properties are mandatory for the professional die-cutting of delicate materials including plastics materials, films, foils, semiconductor material, laminated and metallized folding cartons.
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
