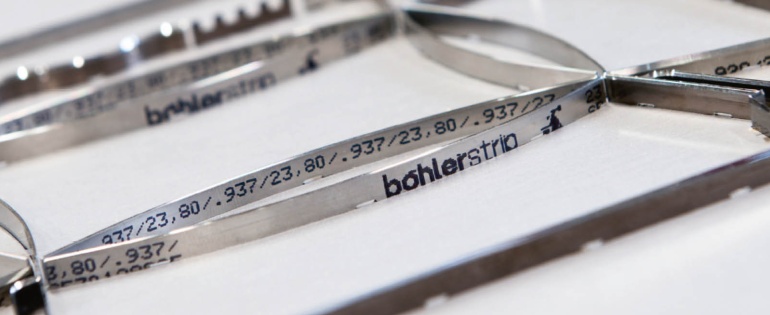

FLATBED STEEL RULES
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
HONEYCOMB
For sustainability reasons, conventional Styrofoam packaging is increasingly being replaced by so‑called honeycomb packaging solutions. Die‑cutting these materials requires two key features: a precisely engineered tooth geometry and an exceptional cutting rule height. With its technical expertise and advanced solutions, bohlerstrip meets both requirements effortlessly.
Link product folder: download
Link product folder: download

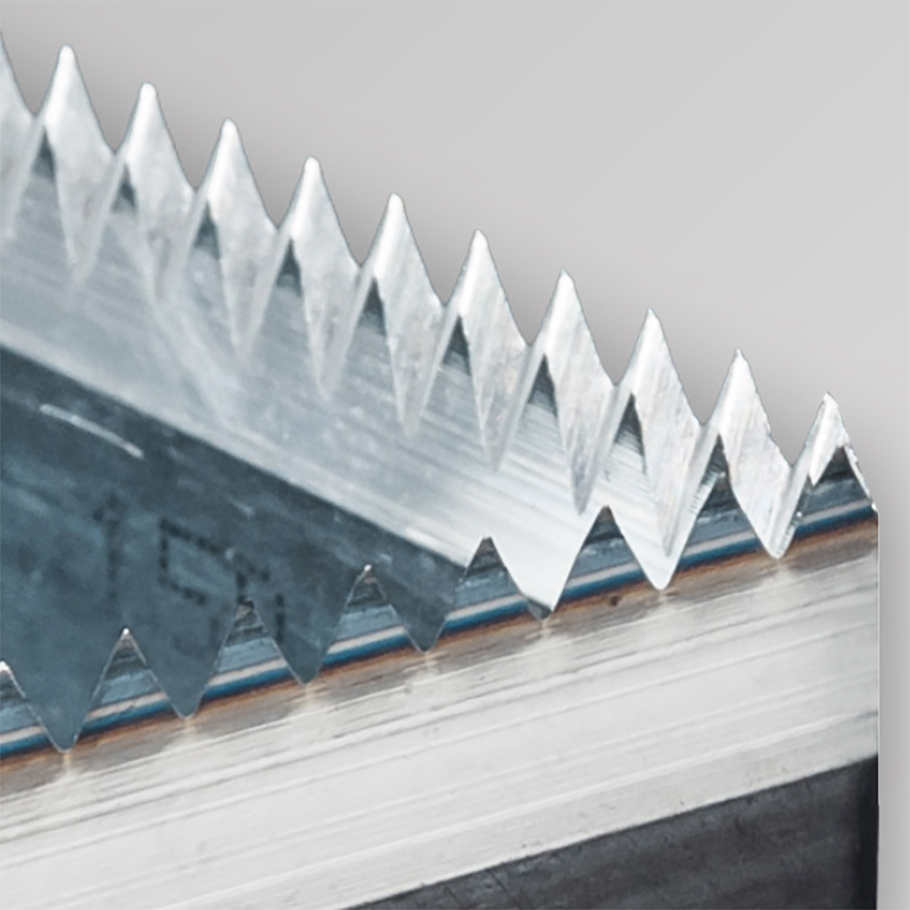

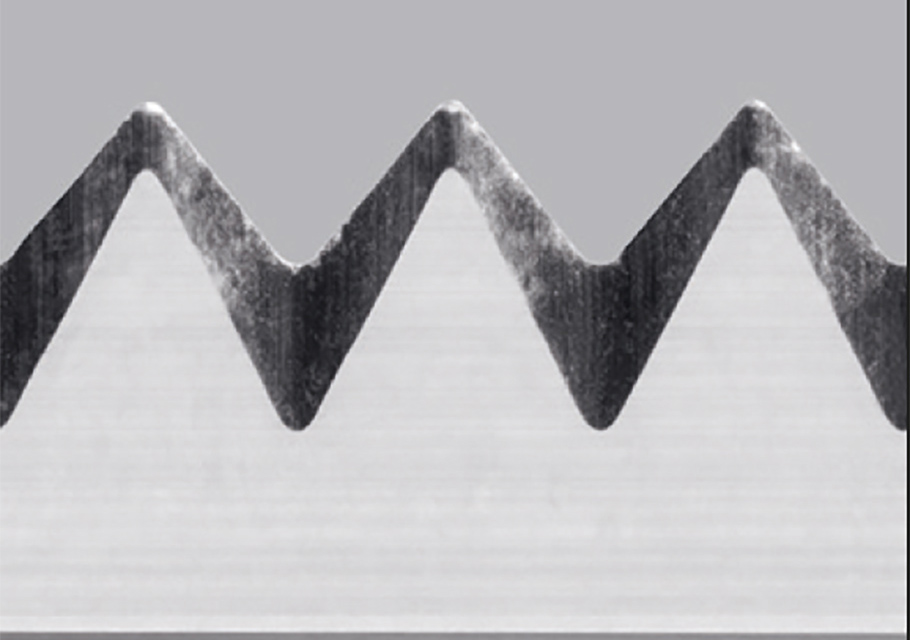

absolutly perfect manufactured 8 TPI teeth geometry
wherever honeycomb packaging are processed, bohlerstrip offers the matching teeth
CFHC 8TPI - ideal for cutting honeycomb packagings
CFHC 8TPI
THE PERFECT CUT FOR HONEYCOMB
bohlerstrip offers unique serrated steel rules precisely engineered to fit your die‑cutting application. The HC – Honeycomb features an 8 TPI flat die profile specifically designed for cutting honeycomb and similar materials. Its sleek, optimized profile requires significantly less cutting pressure and impression compared to standard honeycomb cutting rules, resulting in higher efficiency and improved tool performance.
Benefits:
» versatile use in honeycomb cutting dies (scoring & cutting)
» ideal for foam cutting processes
» good weldability
bohlerstrip offers unique serrated steel rules precisely engineered to fit your die‑cutting application. The HC – Honeycomb features an 8 TPI flat die profile specifically designed for cutting honeycomb and similar materials. Its sleek, optimized profile requires significantly less cutting pressure and impression compared to standard honeycomb cutting rules, resulting in higher efficiency and improved tool performance.
Benefits:
» versatile use in honeycomb cutting dies (scoring & cutting)
» ideal for foam cutting processes
» good weldability
| Quality | Universal 60 |
| Hardeness body | 450 HV |
| Hardeness tip | ~ 520 HV |
| Thickness | 3 pt / 4 pt (1.05 mm / 1.42 mm) |
| Heights | up to 100 mm possible |
| Bevel type | CF (center face) |
both edges, back and round bevel are matching perfect

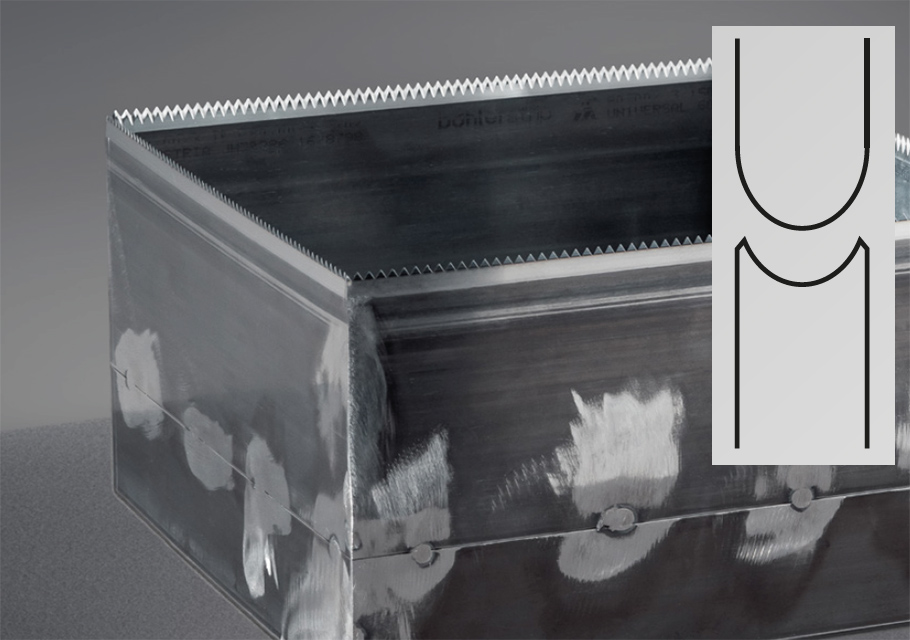

HK CONNECTING CHANNEL
HEIGHT UPGRADE UP TO 200MM
To increase cutting rule height, bohlerstrip applies a smart and proven solution. Two individual cutting rules, each 100 mm high, are joined via a connecting tunnel to achieve a total height of 200 mm. The specially designed back and cutting geometries fit together perfectly, allowing for precise welding. The result is a stable, robust cutting rule with a total height of 200 mm, ideally suited for demanding honeycomb die‑cutting applications.
Features:
» good weldability
» easy pairing due to connecting channel on spacing rule
» body hardness (~45HRC) identical to cutting rule
» autobender processing equal to cutting rule
To increase cutting rule height, bohlerstrip applies a smart and proven solution. Two individual cutting rules, each 100 mm high, are joined via a connecting tunnel to achieve a total height of 200 mm. The specially designed back and cutting geometries fit together perfectly, allowing for precise welding. The result is a stable, robust cutting rule with a total height of 200 mm, ideally suited for demanding honeycomb die‑cutting applications.
Features:
» good weldability
» easy pairing due to connecting channel on spacing rule
» body hardness (~45HRC) identical to cutting rule
» autobender processing equal to cutting rule
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
