Flatbed steel rules
OPTIMUM OR PREMIUM?
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
It is the performance that makes the difference.
The better is always the enemy of the good. Premium is always more than optimum. Things that were state-of-the-art yesterday have maybe become the standard today. This is the reason why we at bohlerstrip permanently strive to push the limits. In close cooperation with our customers we develop new, innovative solutions and make them real.
Special rules

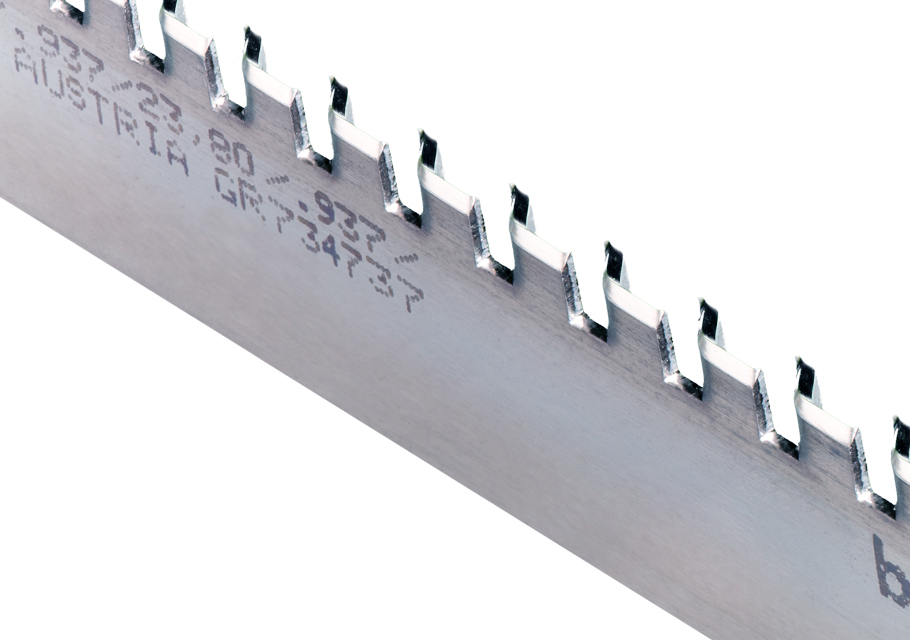

Perforating Rules
bohlerstrip perforating rules are available in a wide range of thicknesses and tooth/gap combinations. The spacing is usually given in mm. On request we also manufacture in point and inch spacings.
| Grade | TOP, UNIVERSAL |
| Bevel Profile | CF, CFDDB |
| Thickness | 2pt/3pt/4pt |
| 0.71/1.05/1.42 mm | |
| Height | 21.30 - 25.40 mm |
| 0.840"-1.000" | |
| Spacing P | tooth/gap |

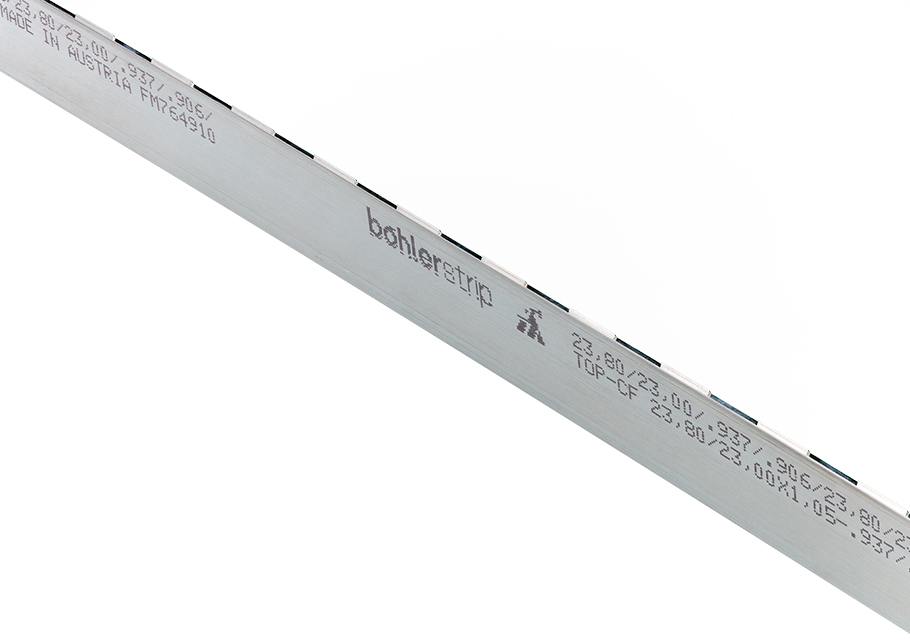

Combination Rules (Cut-Crease)
With cut-crease rules there is no need to insert individual parts of cutting and creasing rules.
bohlerstrip cut-crease rules are produced in standard punched (CF), or in flator round machined executions for high-quality jobs (CF / FT and CF / SR).
bohlerstrip cut-crease rules are produced in standard punched (CF), or in flator round machined executions for high-quality jobs (CF / FT and CF / SR).
| Grade | TOP, UNIVERSAL |
| Bevel profile | CF, CF / FT, CF / SR |
| Thickness | 2 pt / 3 pt / 4 pt |
| Height | 0.71 / 1.05 / 1.42 mm HS = cutting part height HR = creasing part height |
| Spacing P | cut / crease |
Glue Flap Rule
Glue flap rules are wave edge perforating rules, which are manufactured in the same heights as scoring rules. They are used to roughen the glue flaps on cardboard boxes to obtain a firm grip surface for the adhesive.
| Grade | TOP, UNIVERSAL |
| Bevel profile | CF |
| Thickness | 2 pt 0.71 mm |
| Height | 23.32/23.50/23.60 mm 0.918"/0.925"/0.929" |
| Spacing P | 0.71/0.71 mm |
| tooth/gap | 2pt/2pt |
| Wave Spacing W | 5.0 mm |

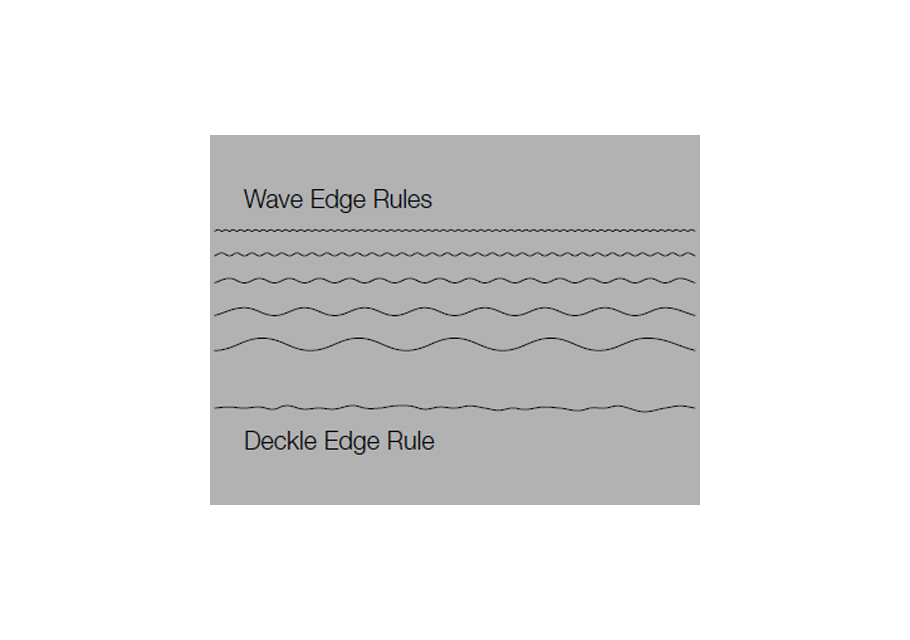

Wave Edge and Deckle Edge Rules
The main application for wave edge rules is in the production of safety cutting edges on solid and corrugated board boxes, to avoid injuries during box handling. Deckle edge rules are used to cut post cards, greeting and business cards.
| Grade | TOP, UNIVERSAL |
| Bevel profile | CF, CFDB |
| Thickness | 2pt/3pt 0.71/1.05mm |
| Height | 21.30-25.40mm 0.840"-1.000" |
| Wave Spacing W | 2.0mm - super fine 3.5mm - very fine 5.0mm - fine 7.00-medium 10.0mm-large |
Stripping Rules
bohlerstrip stripping rules are the optimum solution for ejecting the waste material after the die-cutting process. Perfect stripping ensures high die-cutting speeds, therefore the quality of stripping rules is always an issue. Our production range includes:

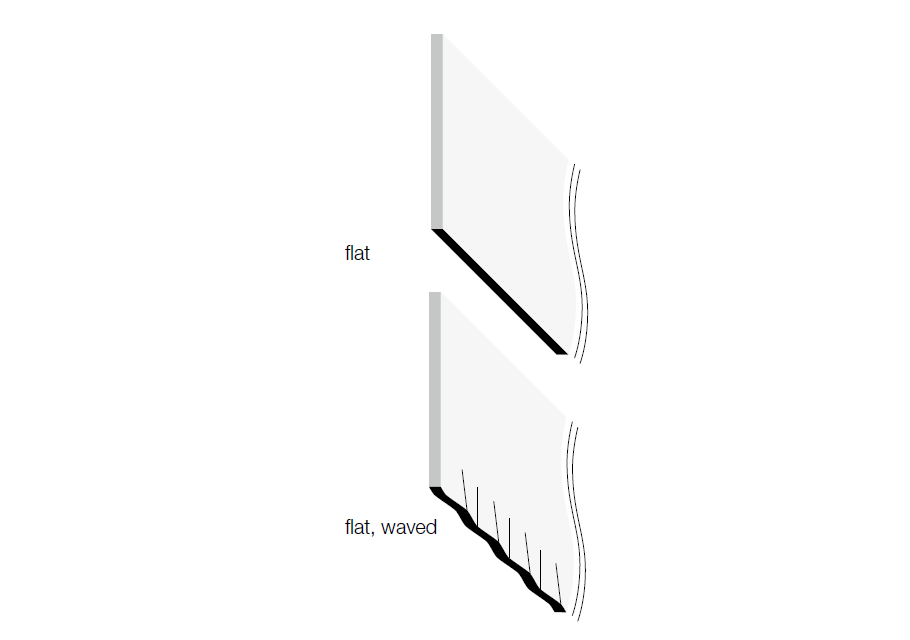

| Grade | TOP 36 FT (Flat Top) |
| Thickness | 3pt 1.05mm |
| Height | 30/40/45/50/55mm |
| 1.181"/1.575"/1.772"/1.969"/2.165" | |
| Wave Spacing W | 3.5mm - very fine 5.0mm - fine 7.0mm - medium 10.00mm - large |
| Grade | TOP 36 |
| Bevel Profile | CF |
| Thickness | 3pt 1.05mm |
| Height | 30/40/45/50/55mm |
| 1.181"/1.575"/1.772"/1.969"/2.165" | |
| Spacing | 0.5/1.5-0.5/5-0.5/10mm |
| Wave Spacing W | 7.00-medium |

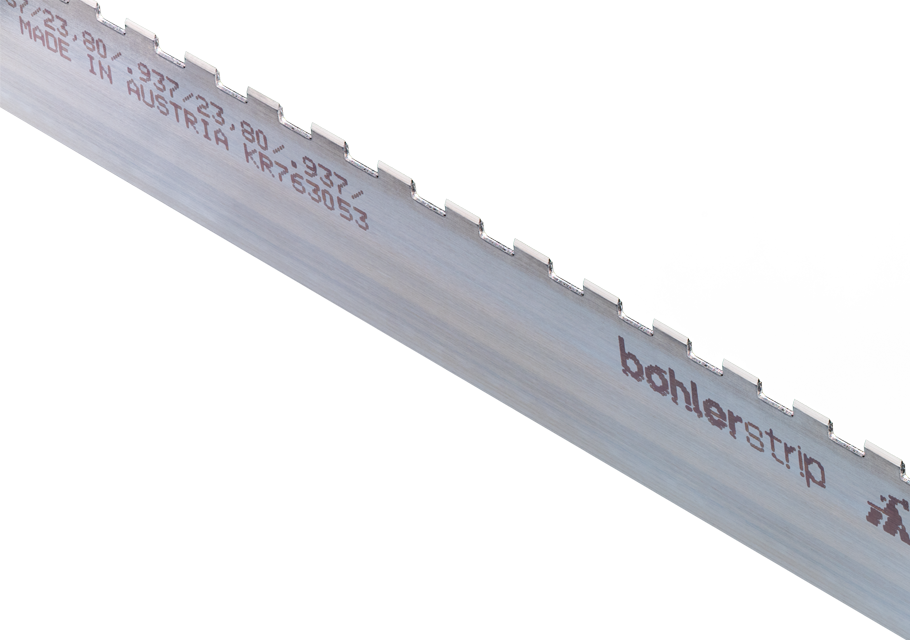

Zipper Edge Rules
Zipper rules provide a tear-open solution especially for shelf ready packagings.
| Grade | TOP 36 |
| Bevel profile | CF |
| Thickness | 2pt/3pt 0.71/1.05mm |
| Height | 21.30-25.40mm 0.840"-1.000" |
| Tooth Spacing A | 6.0mm, 8.0mm, 10mm, 12.0mm |
| Specification | straight - angled part: 3/5-2/5 |
| Packaging | in pairs |

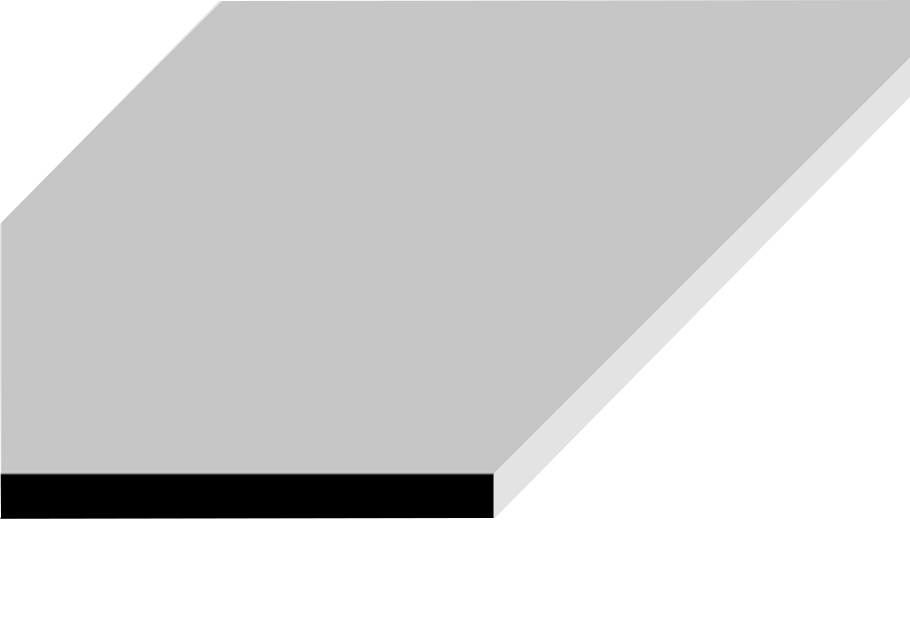

Spacer Rules
Spacer rules fill gaps between steel rules and wider laser cuts within the die board or backfill unwanted laser cuts within an existing die. The rules show a square cross sectional profile. bohlerstrip spacer rules are available in all common wood sizes used
in the die making industry.
in the die making industry.
| Grade | HT/HR |
| Bevel profile | cut edges |
| Thickness | 1/2pt - 6 pt 0.36-2.13mm |
| Height | 15,70,18, 20 mm 5/8", 3/4" |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
