X-Products
The next Generation X portfolio of cutting rules.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
bohlerstrip X-products are the latest innovations and address very special customer requirements. They have been developed together with our customers. You benefit from our extensive metallurgical and steel machining expertise, as well in particular from our application skills in die cutting a diverse array of materials.
Effortless make-ready

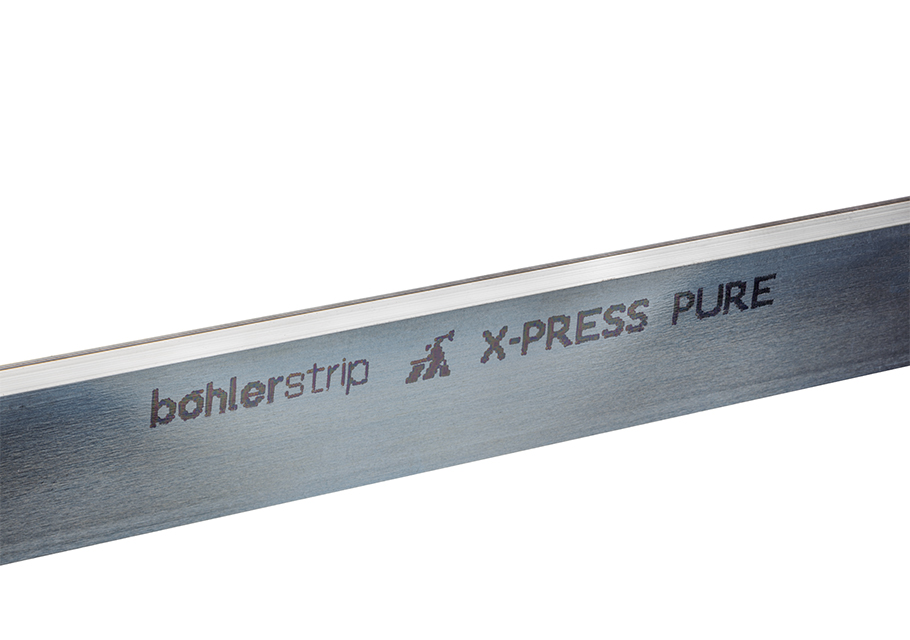

The slimlined back execution of the cutting rule combined with the patented micro-serration is considerably more sensitive. In practical terms this means, that under ideal circumstances, make-ready without patching is achievable. X-PRESS pure provides best results with medium to small size production runs of corrugated and solid board.
Benefits
– Make-ready without patching achievable
– Excellent and consistant cutting quality
– Easy change-over between die-cutters
– Ideal for one-off dies
– Excellent and consistant cutting quality
– Easy change-over between die-cutters
– Ideal for one-off dies
Benefits for the converter
– Increased productivity
– Optimum machine utilization
– Best die-cutting results
– Easy handling
– Optimum machine utilization
– Best die-cutting results
– Easy handling
Features

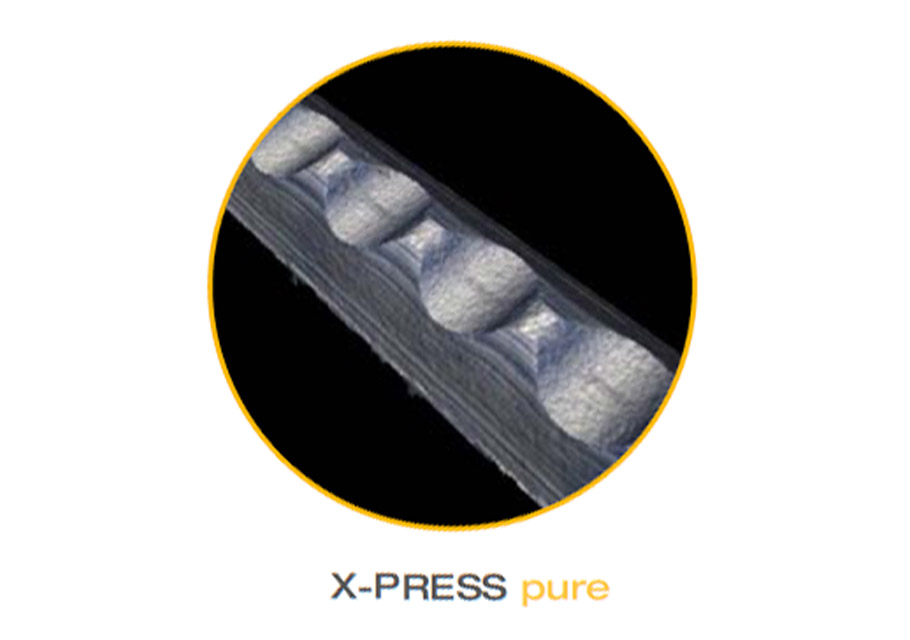

– Self-levelling cutting rule with micro serrated and V-shaped rule back
– Similar processing as standard UNIVERSAL rules
– Excellent bendability
– Similar processing as standard UNIVERSAL rules
– Excellent bendability
Application
– Solid board
– Corrugated board
– Corrugated board
Click picture to enlarge
| X-Press | |
| Hardeness | Body ~340 HV (~35 HRC) |
| Cutting tip ~ 660 HV (~58 HRC) | |
| Height | 23.8 mm (.937") |
| Thickness | 2 pt / 3 pt |
| Cutting bevel | CF / CFDB |
| Cutting execution | Shaved S, Polished P, Supreme M |
| Cutting angle | 53°, 42° |
| Cutting back | micro-serrated, self-levelling |
| Form of delivery | Lengths a 1,000 mm, Coils a 100 m (2pt) Coils a 60 m (3pt) |
We have the right cutting product for every material you want to diecut, be it paper, cardboard, leather or textile.
